A Study of the Surface Plasmon Enhancement Using ARC on Thin Film Si Solar Cell Performance
Razan Nejm1*, Mousa Hussein1 and Ahmed Ayesh2
1Department of Electrical Engineering, United Arab Emirates University, Al Ain, United Arab Emirates
2Department of Physics, United Arab Emirates University, Al Ain, United Arab Emirates
*Corresponding author: Razan Nejm, Department of Electrical Engineering, United Arab Emirates University, Al Ain, United Arab Emirates, E-mail: r.radwan@uaeu.ac.ae
Received: November 30, 2013; Accepted: February 04, 2014; Published: February 09, 2014
Citation: Nejm R, Hussein M, Ayesh A (2013) A Study of the Surface Plasmon Enhancement Using ARC on Thin Film Si Solar Cell Performance. SOJ Mater Sci Eng 2(1), 5.
AbstractTop
Trapping light inside the solar cells can significantly boost their efficiency by minimizing the reflection losses at the front interface as well as the absorption losses in the solar cell by increasing the path length of incoming light. This study focuses on light trapping using single antireflection coating (ARC) and Ag nanoparticles (NPs). Theoretically Si3N4 with quarter wave thickness allowed our Si ultrathin film device to absorb 70% of the incident light around the target wavelength before adding Ag NPs. However placing the Ag NPs on the ARC surface give the best results compared to the other positions, whereas decreasing the overall refractive index of the device improves its behavior.
Keywords: Plasmonic; Nanoparticle; Ultrathin film; Dielectric; Antireflection coating; Field enhancement
IntroductionTop
Over the past ten years thin film solar cells have attracted the attention of optical researchers worldwide after reducing the material used in solar cell manufacturing [1,2]. This is due to the fact that 40% of a crystalline silicon solar module cost is the cost of the silicon material itself [3]. Naturally reducing the absorbing semiconductor thickness decreases the absorbing energy close to its electronic bandgap. This is also a major problem in Si thin film based devices, where Si have poor absorption near the bandgap as its absorption length is >300 μm [4,5].
Light trapping is the key solution for such energy-conversion efficiency, and it was achieved by different techniques such as surface texturing [6] and recently surface plasmon (SP) using metallic nanoparticles [3,7-11]. Although these two methods showed great improvement especially the later one, the main problem of solar cells is not solved which is light reflectance.
A significant part of the incoming light (up to 35% approximately) is reflected by the solar cell surface due to the refractive index contrast between the ambient medium (air) and the solar cell silicon-based device [12,13]. Researchers found that covering the device by dielectric layer (antireflection coating) reduces the overall reflection of the incident light [1]. In result, this layer increases the amount of light entering the device and enhances the power conversion efficiency of solar cell [12]. Single layer antireflection coatings (ARC) designed with appropriate refractive index (n) and layer thickness (d) results in a significant decrease in the reflection coefficient [14,15]. One of the simplest and most efficient types of single ARC is called the quarter-wave transformer. Its great results make it a good and cheaper alternative for using metallic nanoparticles. However, using metallic nanoparticles with appropriate parameters might have a positive effect on the overall enhancement.
In our previous work [16], light scattering from silver (Ag) nanoparticles was investigated numerically by varying the adjustable parameters in order to determine some fundamental design principles. Light trapping using passivation layer (ARC) gave promised results. This paper studies the coupling of light into the Si substrate using ARC and Ag nanoparticles.
In this study we are focusing on ARC effect by changing its thickness, material and the nanoparticles position. The inter-particle interaction between the nanoparticles is simulated using three Ag nanoparticles at different locations (on the surface of ARC, on the surface of c-Si and on the middle of c-Si).
Numerical SimulationTop
Numerical simulations were performed using OptiFDTD simulation tool from Optiwave Company [17]. Three spherical silver (Ag) nanoparticles (NPs) with 30nm diameter were modeled using Drude-Lorentz model. Crystalline silicon (c-Si) substrate of 100nm in thickness and constant refractive index (n=3.45) was used for all cases (semi-infinite and finite) models. All the results in this report are in term of electric field (Ey) which is limited by using 32-bit simulation type machine. Source is assumed normal incidence on the structure, propagating from air into substrate and 50nm above the device as shown in Figure 1.
The main goal of this study is to analyze the antireflection coating (ARC) on enhancing the c-Si efficiency in the presence of Ag nanoparticles. ARC is a thin layer that coats the thin film surface to minimize the reflection.
Three different ARC materials are used in the analysis; these are SiO2, Si3N4 and ITO. Drude-Lorentz model is used as well for modelling the ARC layers. APML boundary conditions are used throughout all the simulations. Three observation points were used to study the electric field intensity, on the surface of the device (including the passivation layer) (OP1), on the c-Si surface (OP2) and in the middle of the thin film (OP3). All the results are normalized to the incident electric field and calculated as a function of wavelength. The following section present results obtained based two scenarios Semi-infinite c-Si substrate and finite substrate.
Results and DiscussionTop
Semi-infinite c-Si substrate
In order to get a better understanding of the ARC effect on the behavior of the model, 50 nm of ARC layer was added above the c-Si substrate and the results at OP1,OP2 and OP3, Figure 1, recorded. To show the light trapping amount gained from adding the ARC, differential electric field between OP1 and OP3 is obtained as shown on Figure 2 for all three materials. SiO2 oxide layer gives the best enhancement with highest resonance, where Si3N4 and ITO show almost similar results as there refractive indexes are close. These results are in agreement with [18].
Figure 1: Device structure.
Figure 2: Effect of adding 50 nm ARC on semi finite c-Si.
Figure 2 highlights clearly redshift phenomena in Si3N4 and ITO because of their higher refractive index. Increasing the ARC thickness increases the electric field trapped in the device as shown in Figure 3, where the thickness has been resulted in enhanced light trapping by approximately 10%. A Redshift phenomenon is also clear in Figure 3 due to increasing the ARC thickness.
Figure 3: Effect of adding 70nm ARC on semi-finite c-Si.
Changing passivation layer thickness shows direct proportion to electric field enhancement on the surface and inside the thin film. The thicker the dielectric layers the more intensity enhancement results, this is illustrated in Figure 4 taking SiO2 as an ARC material and changing its thickness (t) from 20nm to 90nm. One can notice from Figure 4 that the electric field trapped inside the device has increased as the thickness changed from 20-90 nm, moreover redshift is pronounce after 70nm thickness, this result agree with literature Akimov YK et al. [19].
Figure 4: SiO2 effect as t changes.
This redshift phenomena allows manufacturer to tune the plasmon resonance of the solar cell as desired by changing the ARC material or thickness. In order to optimize ARC thickness and minimize incidence field reflectance from the device we propose using quarter wave transformer as a matching media between air and the c-Si substrate. This method depends on impedance matching method by forcing the electric length of the intermediate region (ARC) to be:
t= λ 4 n 2  (1) MathType@MTEF@5@5@+=feaaguart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbdfwBIjxAHbqedmvETj2BSbqefm0B1jxALjhiov2DaerbuLwBLnhiov2DGi1BTfMBaebbnrfifHhDYfgasaacPqpw0le9v8qqaqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbba9q8WqFfea0=yr0RYxir=Jbba9q8aq0=yq=He9q8qqQ8frFve9Fve9Ff0dmeaabaqaciGacaGaaeqabaWaaqaafaaakeaacaWG0bGaeyypa0ZaaSaaaeaacqaH7oaBaeaacaaI0aGaamOBamaaBaaaleaacaaIYaaabeaaaaGccaqGGaGaaeikaiaabgdacaqGPaaaaa@43E2@
Where λ is the incident wave length and n2 is the ARC real refractive index.
Applying the quarter wave length matching theorem [20] n2 can be found from:
n 1 n 2 n 1 + n 2 = n 2 n 3 n 2 + n 3   (2) MathType@MTEF@5@5@+=feaaguart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbdfwBIjxAHbqedmvETj2BSbqefm0B1jxALjhiov2DaerbuLwBLnhiov2DGi1BTfMBaebbnrfifHhDYfgasaacPqpw0le9v8qqaqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbba9q8WqFfea0=yr0RYxir=Jbba9q8aq0=yq=He9q8qqQ8frFve9Fve9Ff0dmeaabaqaciGacaGaaeqabaWaaqaafaaakeaadaWcaaqaaiaad6gadaWgaaWcbaGaaGymaaqabaGccqGHsislcaWGUbWaaSbaaSqaaiaaikdaaeqaaaGcbaGaamOBamaaBaaaleaacaaIXaaabeaakiabgUcaRiaad6gadaWgaaWcbaGaaGOmaaqabaaaaOGaeyypa0ZaaSaaaeaacaWGUbWaaSbaaSqaaiaaikdaaeqaaOGaeyOeI0IaamOBamaaBaaaleaacaaIZaaabeaaaOqaaiaad6gadaWgaaWcbaGaaGOmaaqabaGccqGHRaWkcaWGUbWaaSbaaSqaaiaaiodaaeqaaaaakiaabccacaqGGaGaaeikaiaabkdacaqGPaaaaa@520C@

n 2 = n 1 n 3   (3) MathType@MTEF@5@5@+=feaaguart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbdfwBIjxAHbqedmvETj2BSbqefm0B1jxALjhiov2DaerbuLwBLnhiov2DGi1BTfMBaebbnrfifHhDYfgasaacPqpw0le9v8qqaqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbba9q8WqFfea0=yr0RYxir=Jbba9q8aq0=yq=He9q8qqQ8frFve9Fve9Ff0dmeaabaqaciGacaGaaeqabaWaaqaafaaakeaacaWGUbWaaSbaaSqaaiaaikdaaeqaaOGaeyypa0ZaaOaaaeaacaWGUbWaaSbaaSqaaiaaigdaaeqaaOGaamOBamaaBaaaleaacaaIZaaabeaaaeqaaOGaaeiiaiaabccacaqGOaGaae4maiaabMcaaaa@44E6@
Where n1 and n3 are the refractive indices of the incident and the target regions respectively
In this study c-Si base solar cell with refractive index n3=3.45 is used as substrate, using (3) results in n2=1.85. Si3N4 and ITO both satisfy this condition according to [21] database. For λ=550 nm, thickness of Si3N4 and ITO 68nm and 72nm respectively from (3). Figure 5 shows the backscattering electric field from the three ARC materials for comparison. Although SiO2 doesn’t satisfy the n2 condition [21], it is included in the analysis to prove the matching method.
Figure 5: Ey backscattering from lambda/4n2 ARC on semi finite c-Si.
As shown, Si3N4 scattered the least amount of the incident electric field around the target wave length, whereas SiO2 gave the highest backscattering in spite of using the matching method. Figure 6 shows the absorbed electric field at the middle of the devise as comparison between Si3N4 and ITO ARCs. Si3N4 allows the device to absorb more electric field with wider resonance region. Less thickness and higher electric field absorption are two main reasons to make Si3N4 preferable through this study.
Figure 6: Ey@P3 for 68nm Si3N4 and 72nm ITO ARCs.
All the results shown until now are before adding the Ag NPs. To show the advantage of adding ARC between the substrate and the NPs electric field was measured inside the c-Si at P3 for three different positions for the NPs as shown in Figure 7.

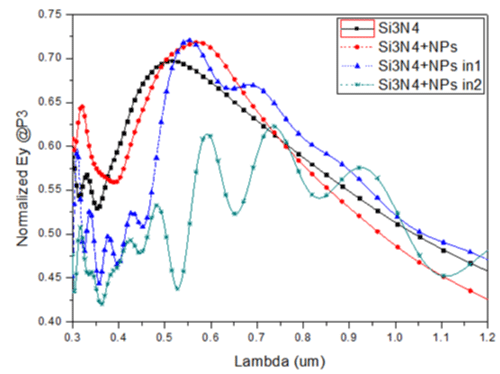

Figure 7: Ag NPs effect on Ey absorbing inside semi finite c-Si.
Ag NPs were placed on the top of the ARC (Si3N4 + NPs), partially inside the ARC (Si3N4 + NPs in1) and on the surfaces of c-Si totally covered with ARC (Si3N4 + NPs in 2). As can be noticed in Figure 7 Adding NPs not always enhances the solar thin film absorption. Adding NPs on the ARC surface gave the best results inside the device, although not a big difference can be noticed after adding the NPs to the ARC layer.
From the backscattering electric field shown in Figure 8, it can be noticed that adding the NPs partially inside the ARC results in less scattered field compared to the other cases although all the cases show very close results. This can be related to metal loss and back scattering which can be compensated by increasing the NPs diameter or number with appropriate spacing [16].
Figure 8: Ag NPs position effect on BS Ey.
Finite c-Si substrate
Changing to finite substrate, the overall refractive index of the structure is reduced. All previous cases were repeated to study the effect of this reduction.
The new obtained results showed higher electric field intensity and some results show almost double of the infinite case. Starting with the effect of adding 50 nm ARC to the solar ultrathin film (100 nm), Figure 9 shows almost double enhancement in electric field trapping for each ARC material.
Figure 9: Effect of adding 50nm ARC on finite c-Si.
Also increasing the ARC layer thickness in the finite case enhanced the absorbed electric field as shown in Figure 10. In both Figure 9 & 10 it can be noticed that two resonance peaks at least appeared compared to semi finite case Figure 2 & Figure 3. Using the quarter wave transformer method for finding the best ARC refractive index in the finite case as in (3) didn’t show good results compared to semi finite case. Figure 11 shows the backscattering electric field after adding matching ARCs.
Figure 10: Effect of adding 70nm ARC on finite c-Si.
Figure 11: Ey backscattering from lambda/4n2 ARC on finite c-Si.
Although in finite case we reached almost zero reflectance, we can notice SiO2 gave the best results this time compared to Figure 5 Also the minimum reflection value is not around the target wave length.
These results conclude that quarter wave transformer method is not compatible with finite case and correction parameters must be added.
Studying the effect of Ag NPs position on the absorbed electric field, NPs on the surface of the ARC shows clear enhancement compared to the other cases as in Figure 12 Compared to the semi-infinite case in Figure 7, all the positions showed better enhancement in the finite case.
Figure 12: Ag NPs position effect on Ey absorbing inside finite c-Si.
ConclusionTop
This paper investigated the surface plasmon and light absorption enhancement of c-Si thin film by studying the ARC layer effect [22]. The main parameters in this study were the ARC thickness, material and NPs position. Finite and semi finite c-Si substrates are the structures for the carried simulation.
It was found that finite structure is preferable to improve the weak resonance region and decreasing the overall refractive index in general can improve the device behavior and this agrees with [16] results. Dielectric refractive index can be changed to tune the resonance location. Different materials can be used as ARC and get almost close results according to quarter wave transformer method but two parameters will be crucial, the target wave length and the ARC thickness. Placing the NPs on the ARC is preferable in both cases where electric field absorption enhanced inside the thin film.
